Glass & MirrorThe GEMINI is a CNC float-glass cutting machine that scores straight and shaped glass from 3 to 19 mm using a motorized, pressure-controlled cutting head driven by AC servos. It runs on a PC based controller with optional Low-E coating deletion brushes and wheels for coated glass. The platform is offered in three bed sizes and can be paired with an inbuilt or separate breaking table plus right, left, or dual side automatic loading.

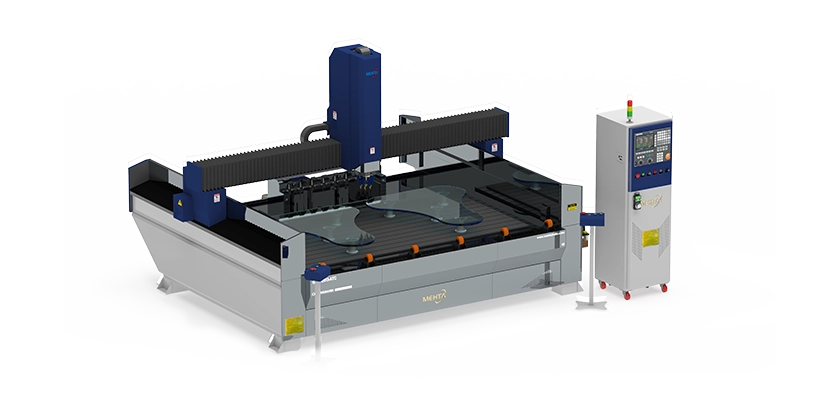

Glass & MirrorThe GAIA is a horizontal CNC glass processing center built around an 11 kW water cooled automatic tool change spindle running to 24000 RPM with a linear tool magazine. It handles drilling, grinding, polishing, routing, beveling, and engraving on glass from 3 to 16 mm held on a vacuum bed. The machine is offered in three machining footprints and uses a linear ATC so tools switch under program control without operator intervention.
Glass & MirrorThe MIRACLE-48 is a CNC fiber laser engraver built for mirrors and glass, using a 120 W, 1064 nm source on a 1220 by 2450 mm table. It frosts mirror surfaces in a single pass and produces fine detail down to a 0.01 mm line width, with designs that glow when backlit by LED. Rack and pinion axes on servo drives give repositioning accuracy of +/- 0.03 mm at marking speeds up to 7000 mm/s.
